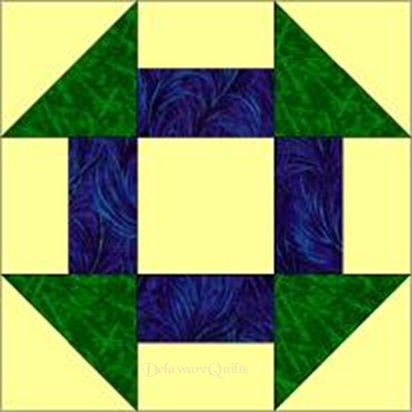

Double Monkey Wrench


Everything I said about the Churn Dash block also applies to this one, because they are the same block really. I have them both on my site because people look for both of them.

For the Double Monkey Wrench block you will need:
    Two 4 7/8 inch squares of a medium (mine is the green)
    Two 4 7/8 inch squares and one 4 1/2 inch square of your background fabric (yellow)
    One 18 inch by 4 1/2 inch strip each of a dark and the background fabric (my dark is the blue)

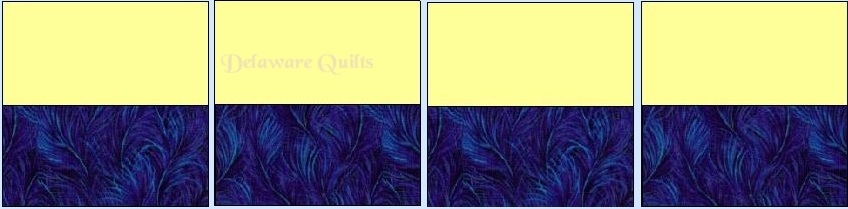

Place the background and dark strips right sides together, and sew using a 1/4 inch seam allowance. Cut into four 4 1/2 inch segments.

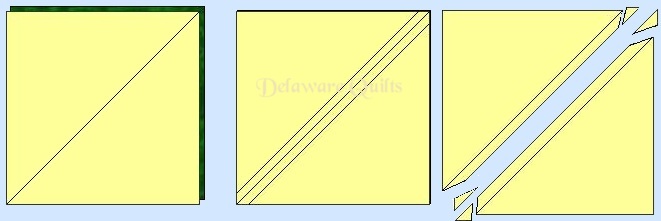

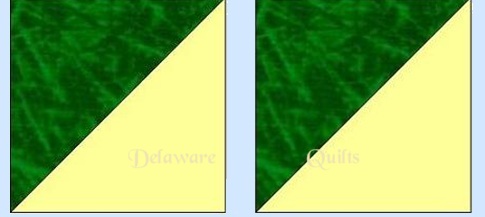

To make the corner units, place a background and medium 4 7/8 inch square right sides together. Mark a line diagonally from corner to corner, and then mark a second line 1/4 inch on either side of that line. The first line is your cutting line, and the second two will be where you sew. Sew on the two sewing lines, cut on the cutting line, and open up your squares. Press to the darker side. You now have two 4 1/2 diagonal half squares.

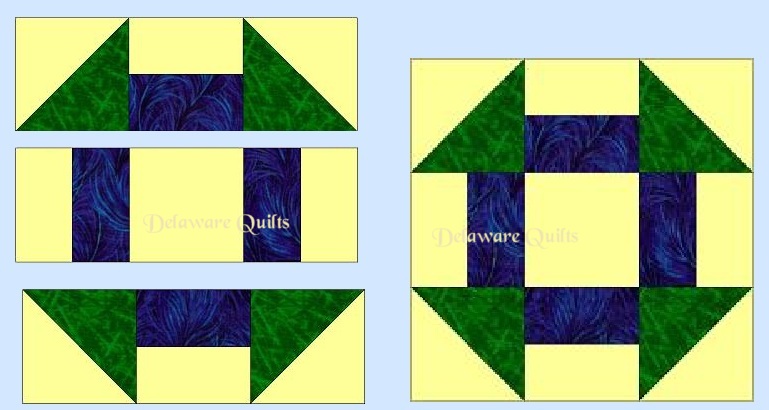

Now sew the rows together as shown in this diagram to finish your double monkey wrench block.

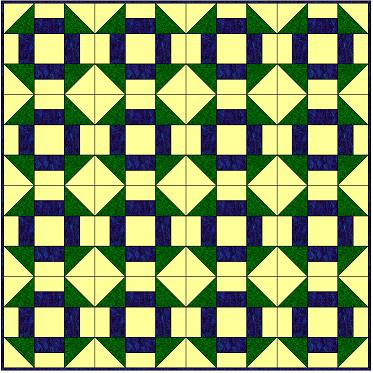

This shows a quilt made from the blocks made above.

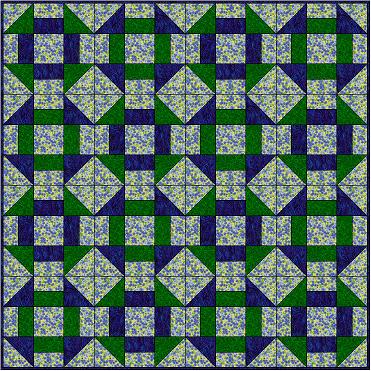

And this shows a similar quilt, with slighting different coloring.


Here are more sizes to make your Double Monkey Wrench blocks.
    Cutting your squares 1 1/2 inches, 1 7/8 for triangles, and 1 1/2 by 1 inches for the rectangles will give you a finished block of 3 inches.
    Cutting your squares 2 inches, 2 3/8 for triangles, and 2 by 1 1/4 inches for the rectangles will give you a finished block of 4 1/2 inches.
    Cutting your squares 2 1/2 inches, 2 7/8 for triangles, and 2 1/2 by 1 1/2 inches for the rectangles will give you a finished block of 6 inches.
    Cutting your squares 3 inches, 3 3/8 for triangles, and 3 by 1 3/4 inches for the rectangles will give you a finished block of 7 1/2 inches.
    Cutting your squares 3 1/2 inches, 3 7/8 for triangles, and 3 1/2 by 2 inches for the rectangles will give you a finished block of 9 inches.
    Cutting your squares 4 inches, 4 3/8 for triangles, and 4 by 2 1/4 inches for the rectangles will give you a finished block of 10 1/2 inches.
    Cutting your squares 4 1/2 inches, 4 7/8 for triangles, and 4 1/2 by 2 1/2 inches for the rectangles will give you a finished block of 12 inches.
Finished means after the block is sewn into a quilt.
